Residential · Mid-rise

Mid-rise Apartment Building

This five-story mid-rise apartment building organizes 43 units — 32 studios, 6 one-bedroom, and 5 two-bedroom — around a central courtyard planted with palms, opening the ground-floor lobby, pool, and gym directly onto this shared green space.

5 stories Height
43 units 32 studios / 6 1BR / 5 2BR
43 parking Covered garage
15,658 SF Enclosed area per floor

Concept

Compact footprint, generous communal spaces

This five-story mid-rise apartment building organizes 43 units — 32 studios, 6 one-bedroom, and 5 two-bedroom — around a central courtyard planted with palms, opening the ground-floor lobby, pool, and gym directly onto this shared green space. Circulation runs along an open-air corridor that threads past the courtyard on every level, keeping residents in constant contact with light, air, and landscape as they move between units. The ground floor also holds retail, a study room, and package/mail room, while 43 parking spaces sit tucked beneath the building's covered garage. Balconies wrap each floor, extending the building's connection to its surroundings unit by unit, for a total enclosed area of 15,658 SF per floor.

Images & Plans

Design views & floor plans

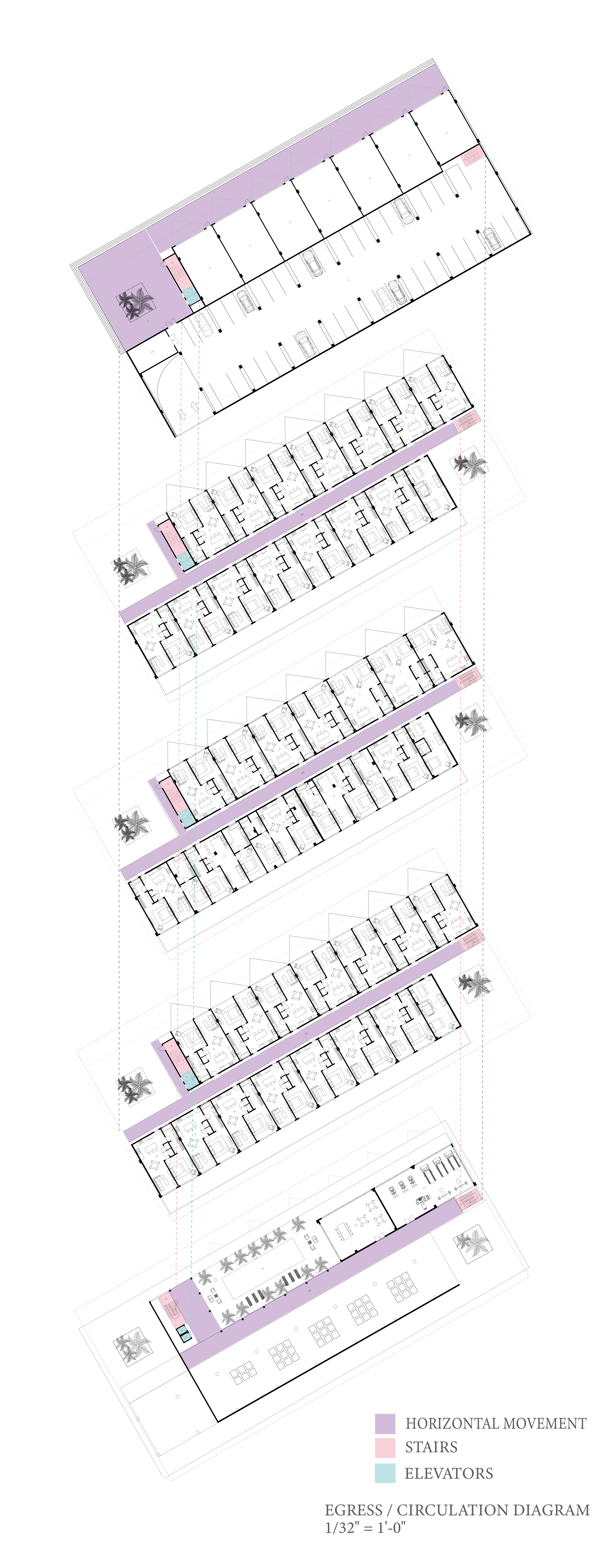

Circulation diagram

Circulation diagram

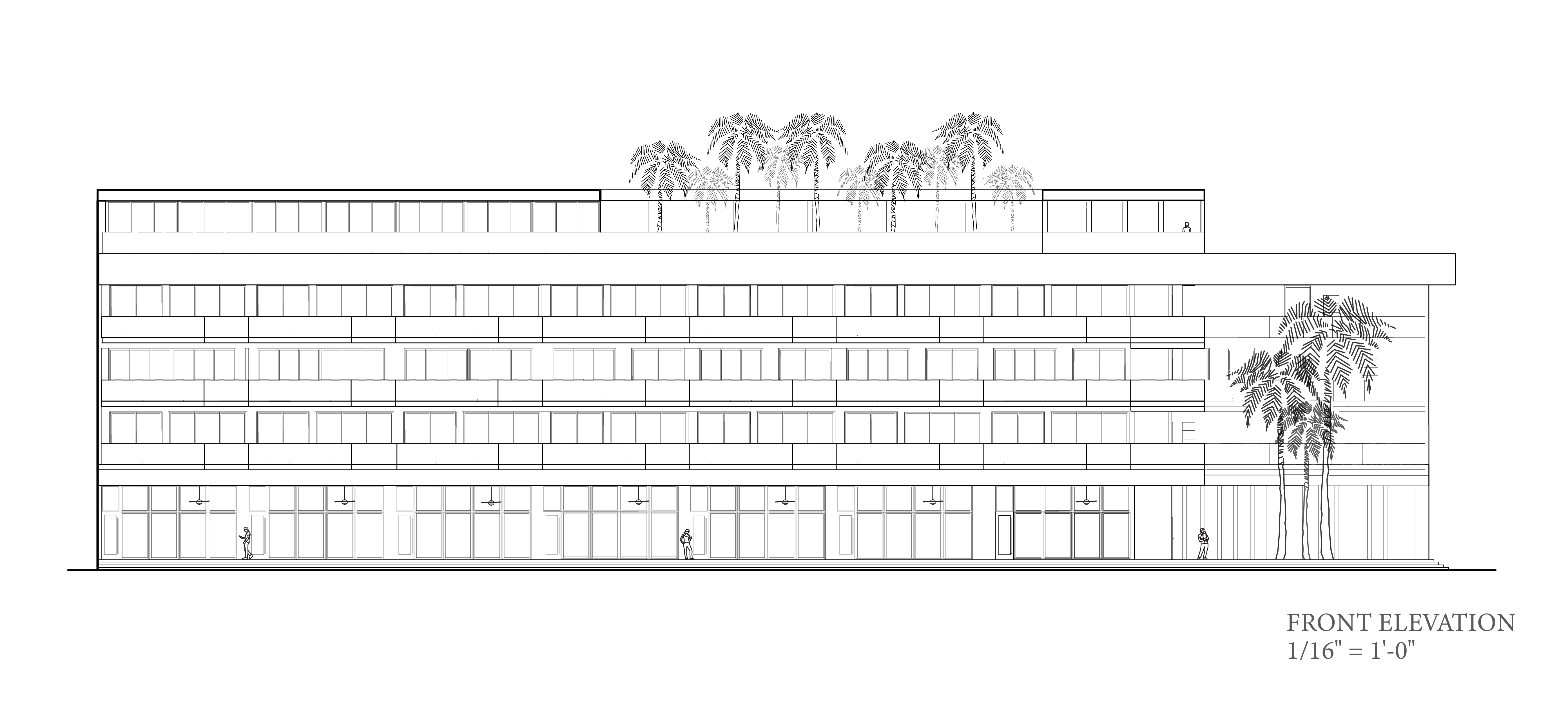

Back Elevation

Back elevation

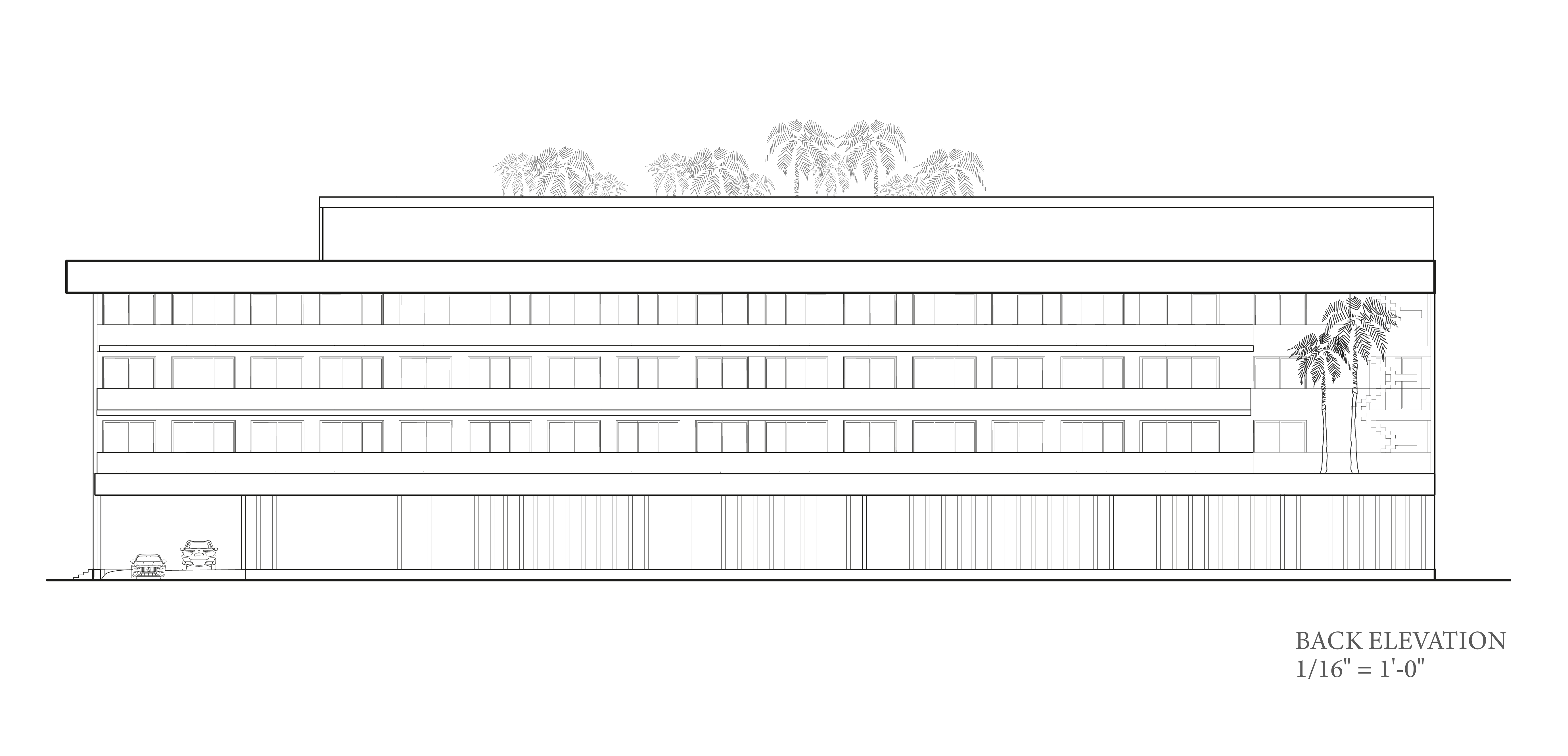

Front Elevation

Front elevation

Floor plans

Floor plans

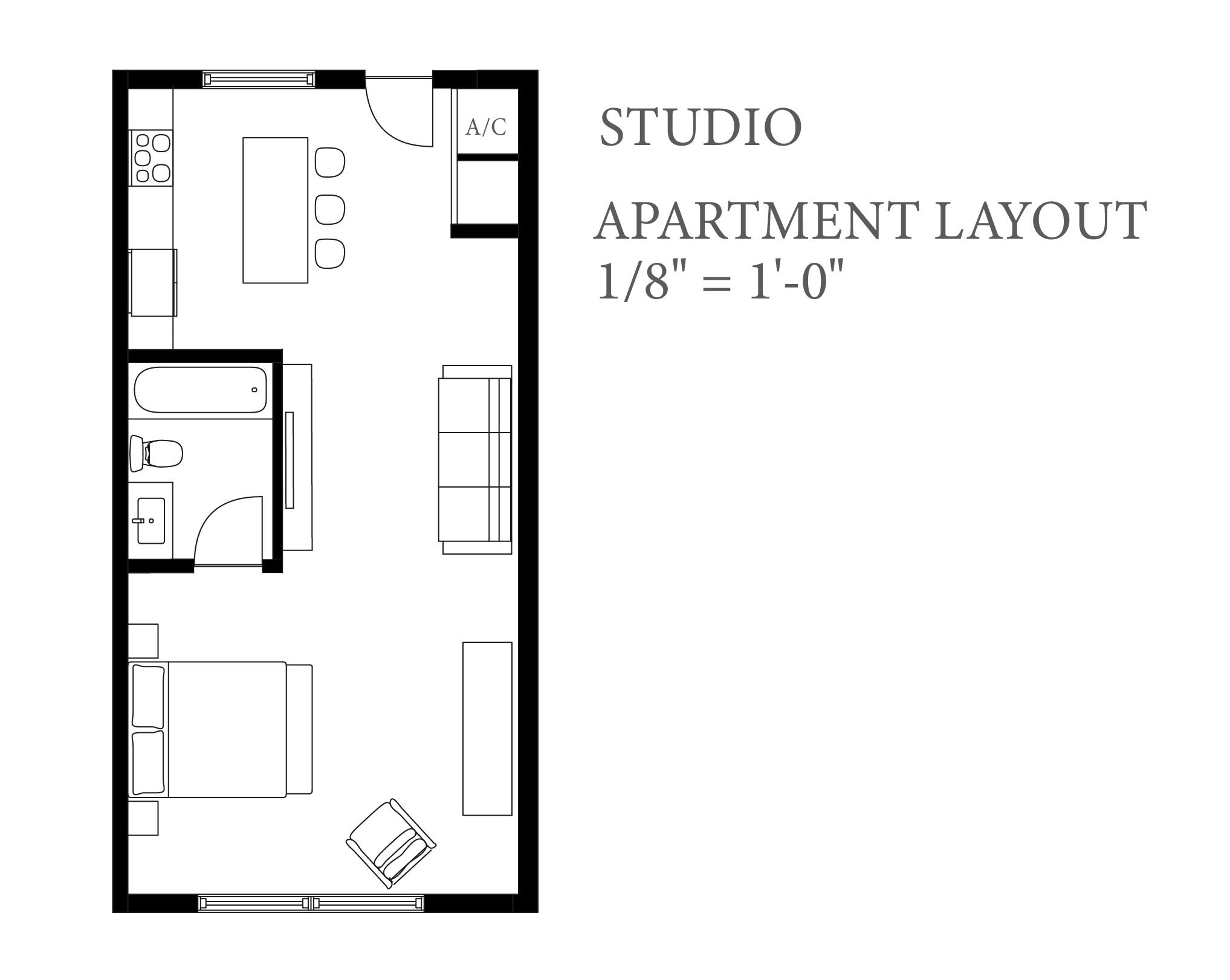

Studio floor plan

Studio plan

Key floor plans

  • 1 — Outdoor lobby
  • 2 — Parking
  • 3 — Retail
  • 4 — Main stairs
  • 5 — Back stairs
  • 6 — Elevators
  • 7 — Studio
  • 8 — 1 bedroom
  • 9 — 2 bedroom
  • 10 — Corridor
  • 11 — Gym
  • 12 — Study room
  • 13 — Pool area
  • 14 — Package and mail room

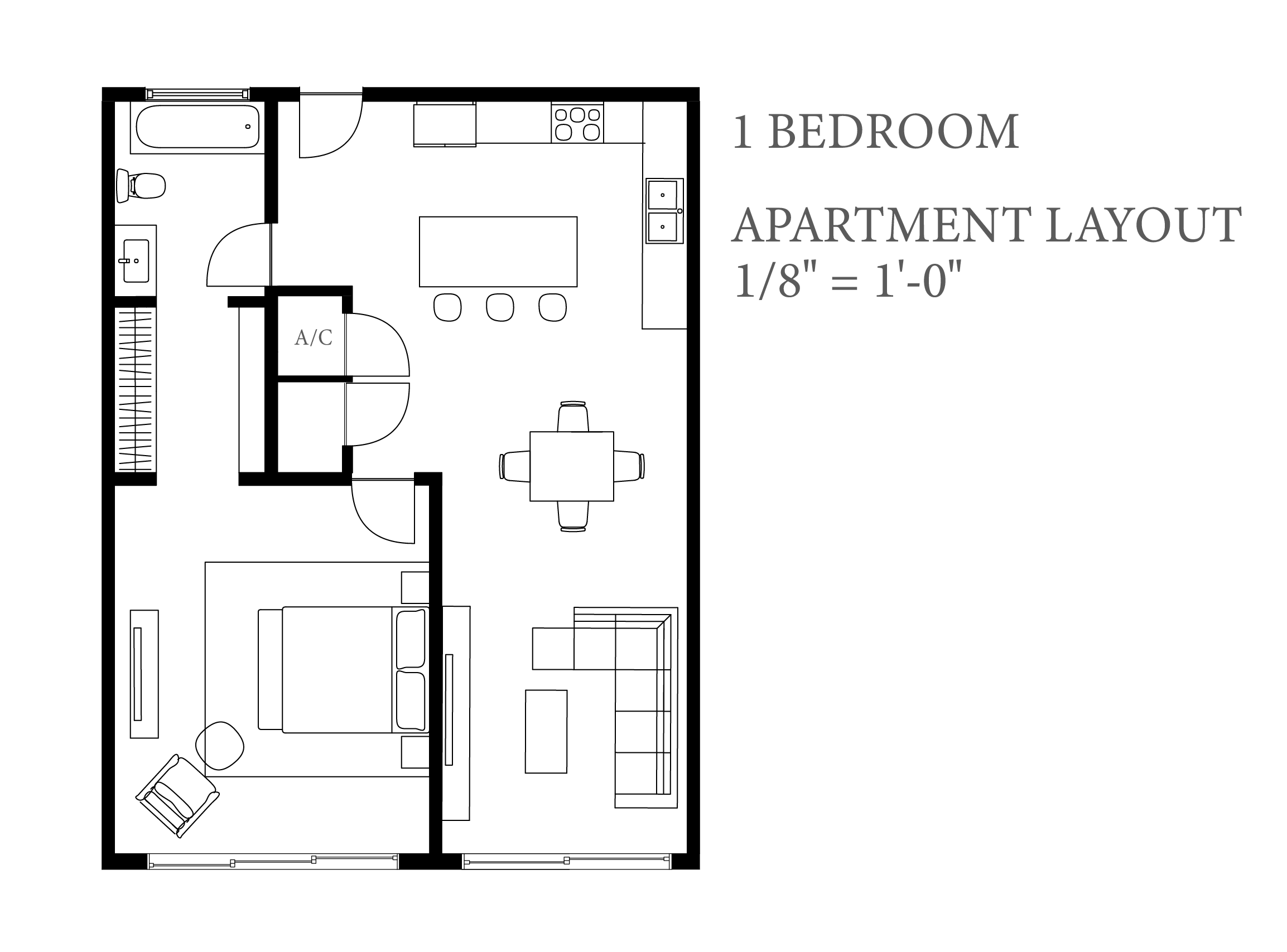

1BRM Floorplan

1 bedroom floorplan

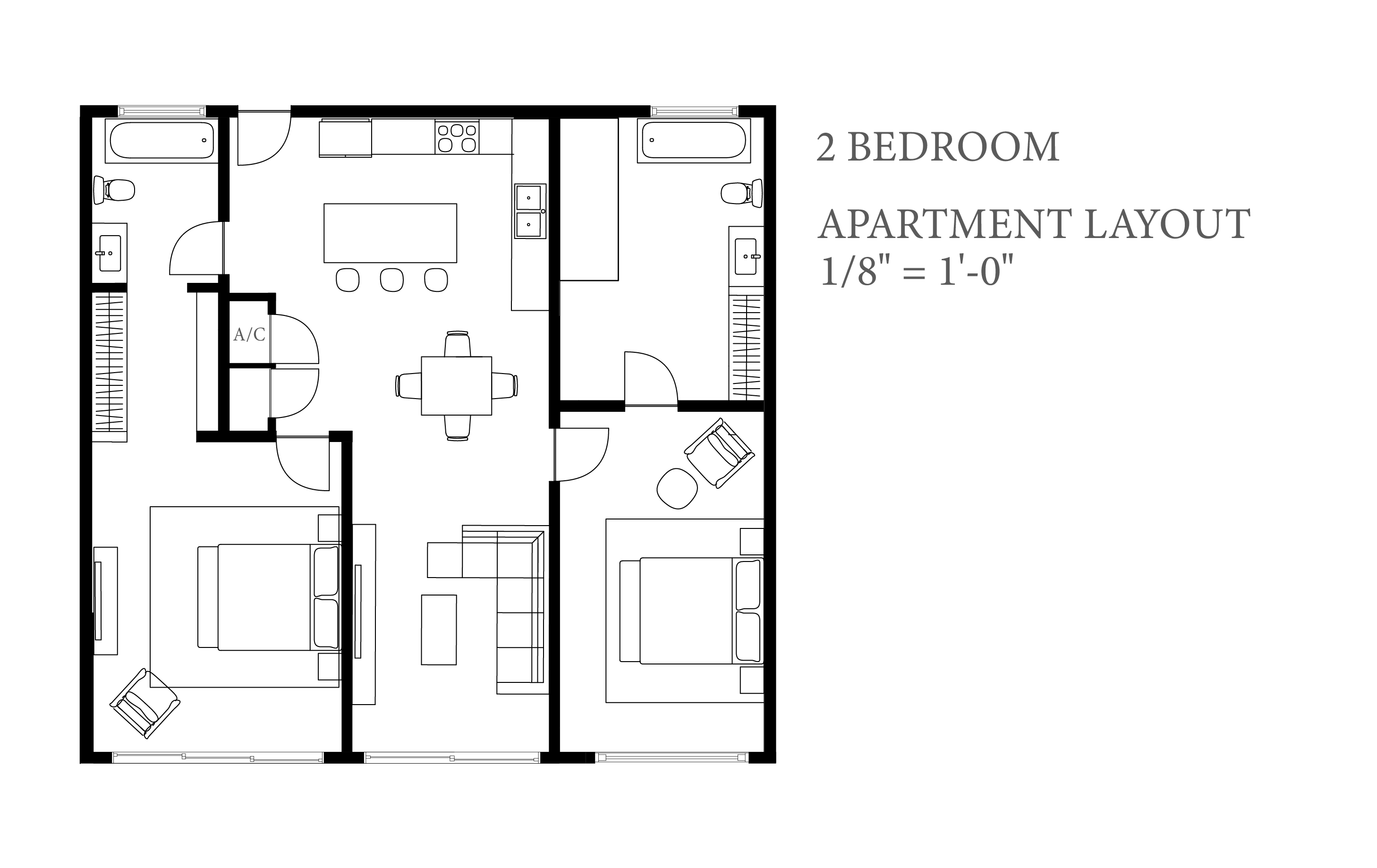

2BDR Floorplan

2 bedroom floorplan

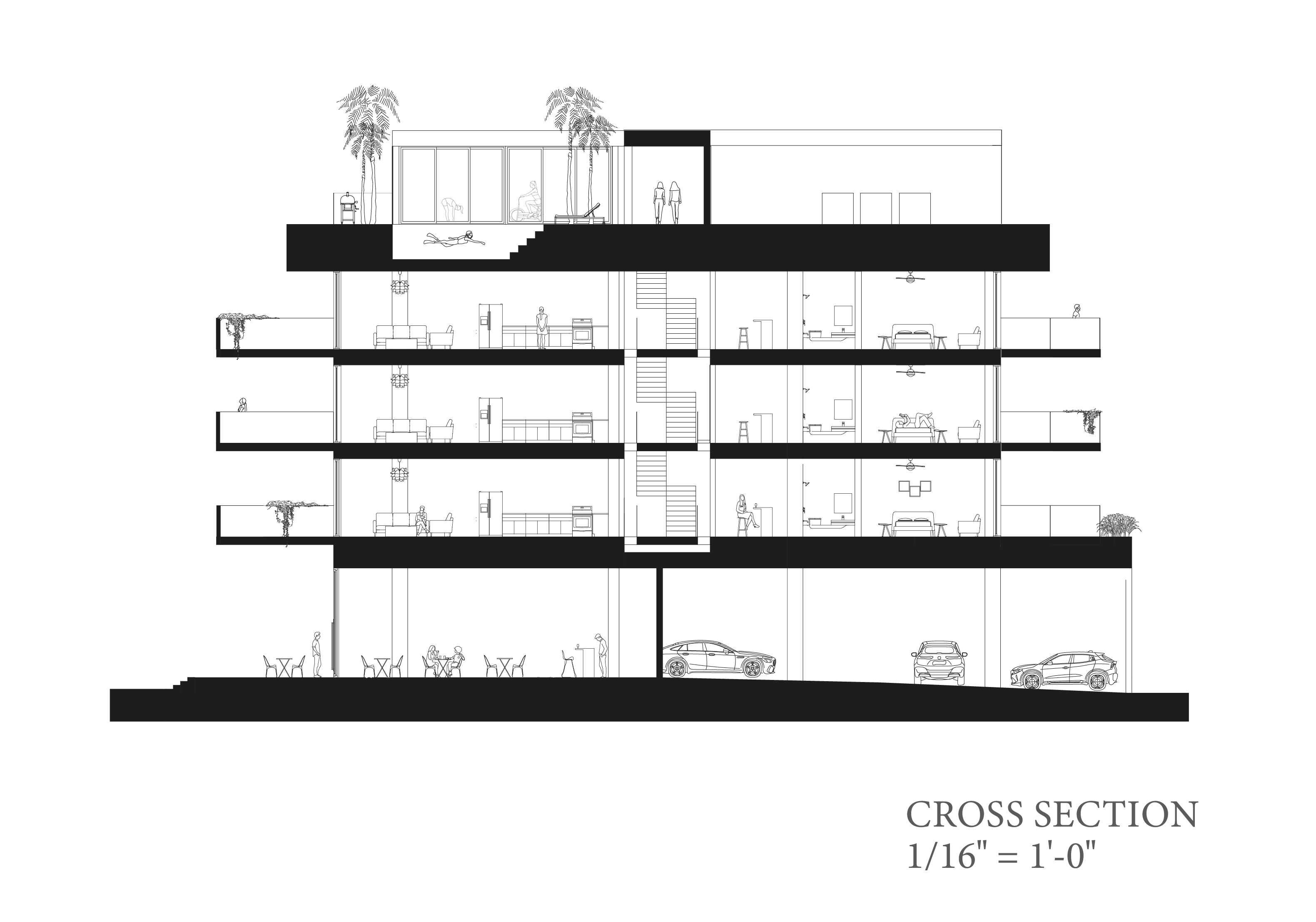

Cross elevation 1

Cross elevation 1

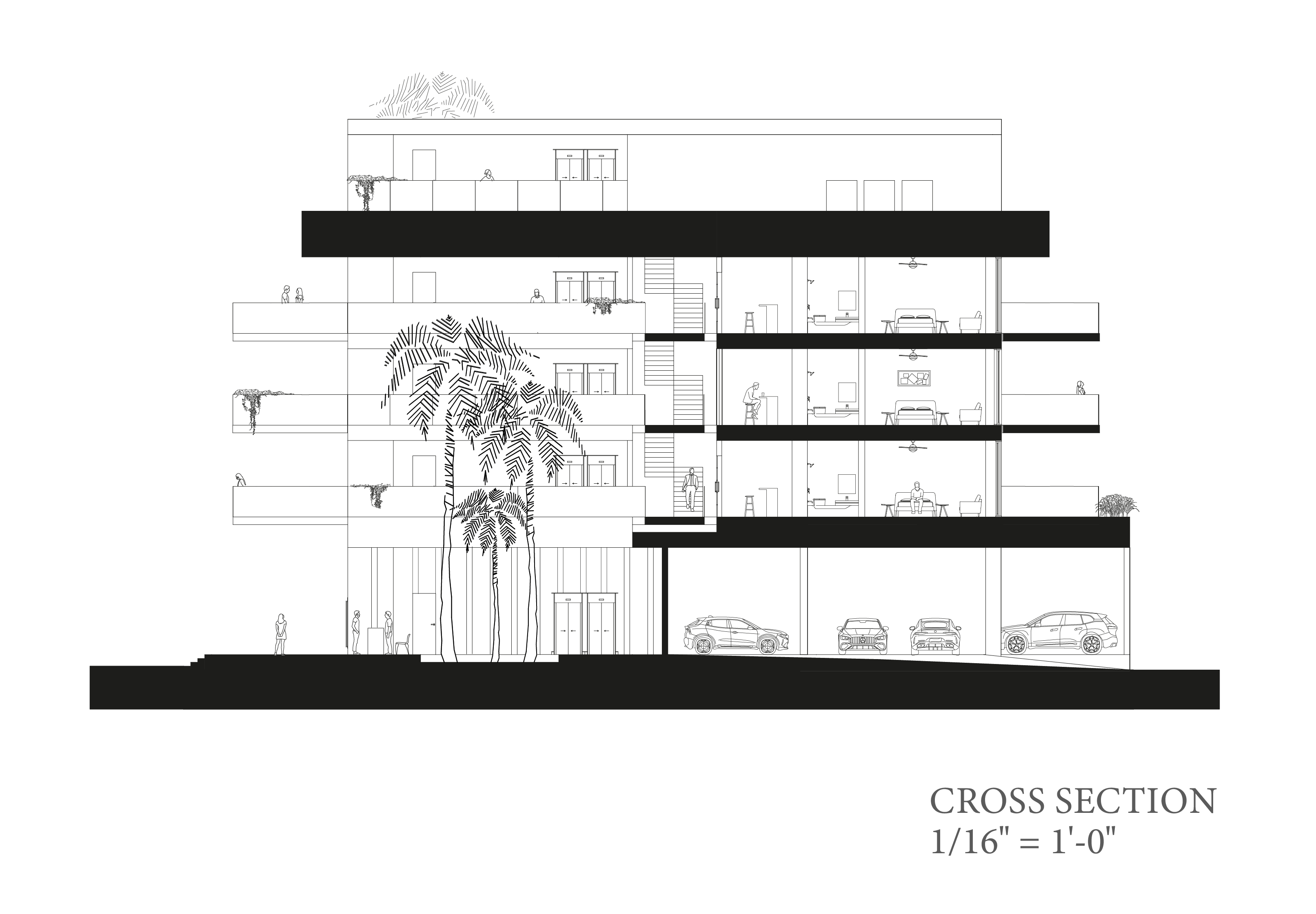

Cross elevation 2

Cross elevation 2

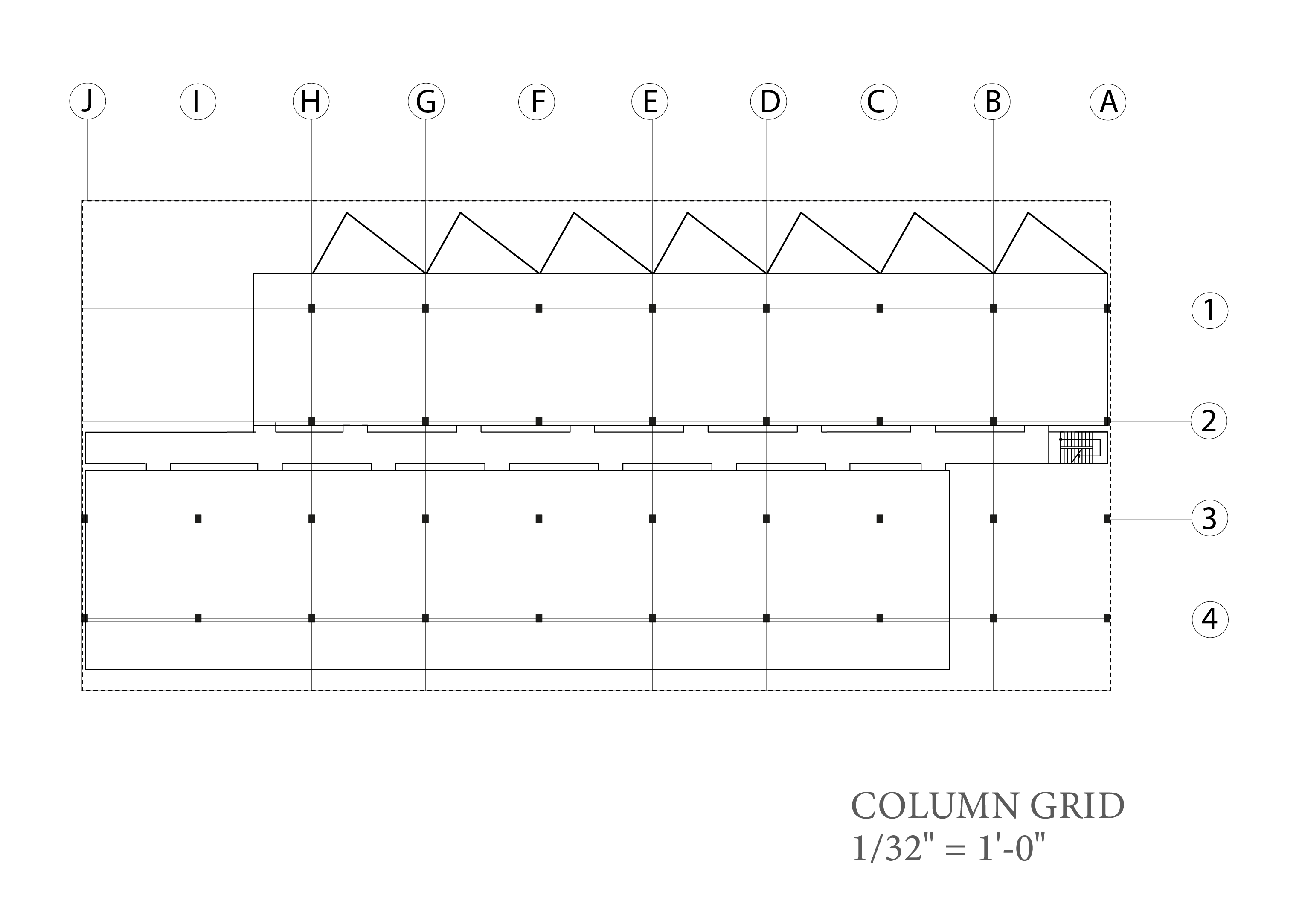

Column grid

Column grid

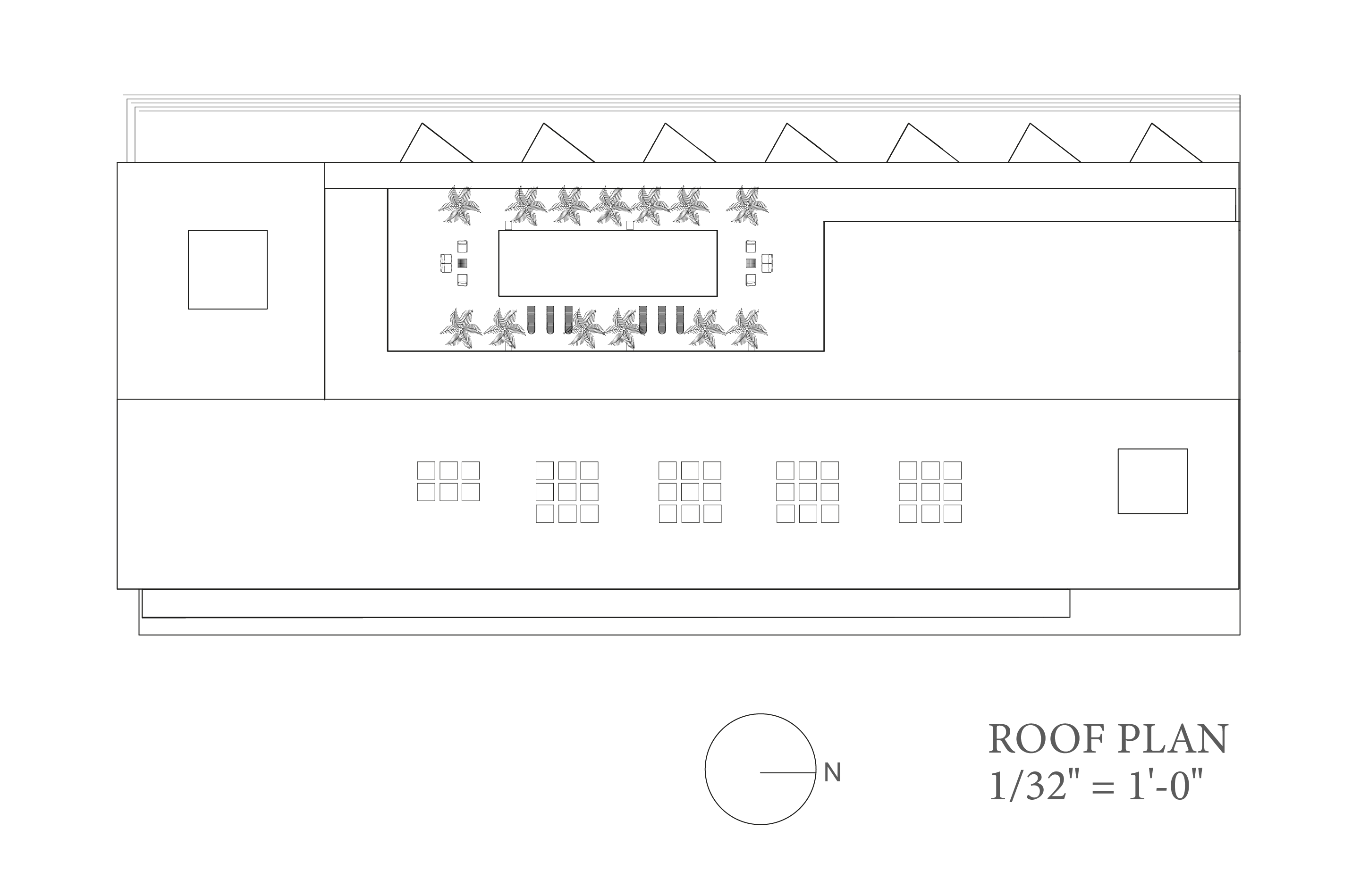

Roof plan

Roof plan

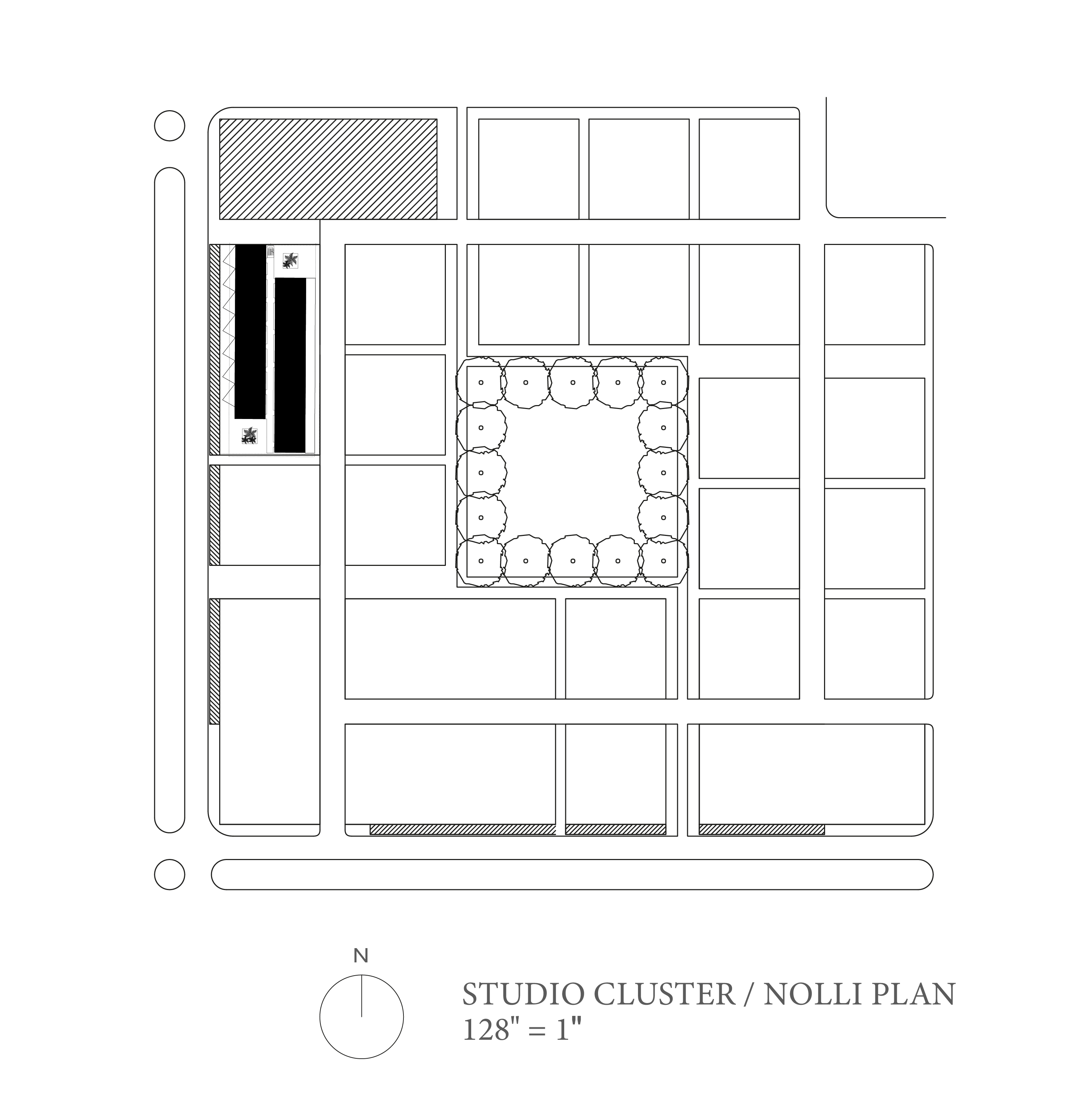

Nolli plan

Nolli plan
